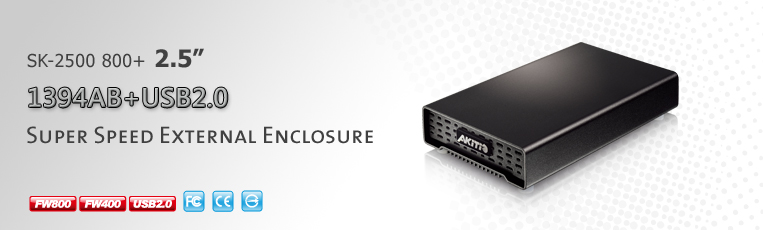

SK-2500 800+

The SK-2500 laptop hard drive enclosure provides a combination of cutting-edge technology, durability, flexibility and portability. Slim, compact and simple to use, this portable aluminum enclosure is designed for the latest 2.5" SATA hard drives.

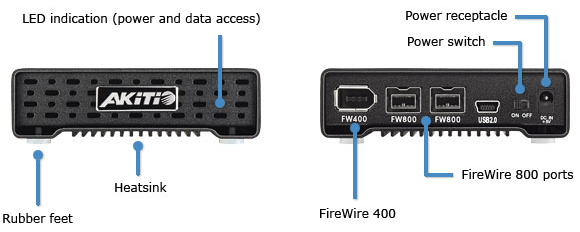

Features

  • FireWire 400 and FireWire 800 interface
  • USB 2.0 mass storage compliant
  • Designed for 2.5" drives up to 12.5mm
  • Large heatsink for passive cooling
  • Durable, compact and portable
  • Stackable
  • Fanless

Specifications

    Part No. SK2-FBA4U2OA1-AKTU
    Case material High quality aluminum for optimized heat dissipation
    Application
    ‧2.5" SATA-I or SATA-II hard drive (1.5Gb/s or 3.0Gb/s)
    ‧Capacity 20GB - 1TB
    ‧Height 9.5mm or 12.5mm
    Interface/Ports

    ‧2x 9-pin FireWire 800 ports
    ‧1x 6-pin FireWire 400 port
    ‧1x Mini USB 2.0 High Speed port

    Data transfer

    ‧FireWire 800 (1394b) up to 800Mbps (100MB/s)
    ‧FireWire 400 (1394a) up to 400Mbps (50MB/s)
    ‧USB 2.0 up to 480Mbps (60MB/s)

    System requirements
    (PC)

    ‧FireWire 400/800: Windows XP/Vista/7
    ‧USB 2.0: Windows XP/Vista/7
    ‧Your hardware device must have the correct corresponding port (e.g. USB 2.0, FireWire 800 or PCI card)

    System requirements (Mac)

    ‧FireWire 400/800: Mac OS 10.2 or above
    ‧USB 2.0: Mac OS 10.2 or above
    ‧Your hardware device must have the correct corresponding port (e.g. USB 2.0, FireWire 800 or PCI card)

    System environment

    ‧Operating Temperature: 5°C ~ 40°C
    ‧Operating Humidity: 20%RH ~ 80%RH
    ‧Storage Temperature: -20°C ~ 70°C
    ‧Storage Humidity: 10%RH ~ 90%RH

    Power supply

    ‧Bus power (host computer has to provide sufficient bus power)
    ‧External power supply (UL, cUL, PSSE, BSMI)
    ‧Input: AC 100-240V, 0.3A, 50-60Hz
    ‧Output: DC +5.2V/2A

    Dimensions
    High (mm) 24
    Long (mm) 125
    Wide (mm) 78
